Automatic Molding Machine,Semi Automatic Molding Machine,Automatic Molding Machine Manufacturers,India

We specialize in manufacturing automatic molding machine and semi automatic molding machine as per the requirements of our customers. Our semi automatic series of machines are available with enhanced operation and functional features that leads to cost effective production. With quality and customer satisfaction as our forte, we provide semi automatic moulding machines that deliver value to client's money spent.

Specifications :

Jolting Load	230 kgs
Squeezing Pressure	3525 kgs
Pattern Draw	155 mm
Table Size	660 x 460 mm
Max. Box Size (outside dimns)	550 x 460 mm
Min Box Size (outside dimns)	330 x 255 mm
Max. Height between squeeze
Plate and table	330 mm
Squeeze plate adjustment	203 mm
Squeeze stroke	76 mm
Table height from floor	584 mm
Air consumption per ½ mould	285 ltrs
Net Weight	870 kgs

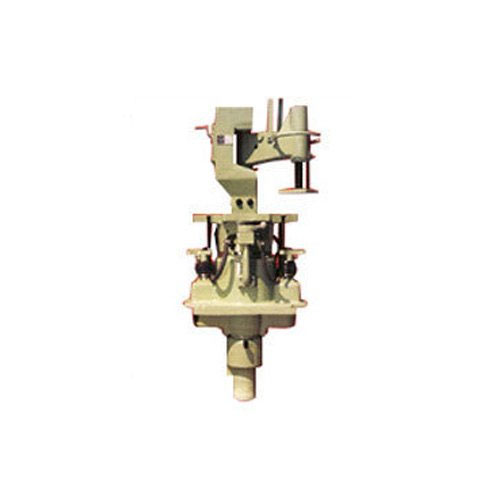

Semi Automatic Molding Machine Model- LSP-2

We offer semi automatic molding machines, that are the best combination of modern technology and design. Thus scoring high on operational efficiency, energy saving and operator's ease. Our semi automatic series of machines are incorporated with features that leads to cost effective production. With focus on quality and customer satisfaction, we manufacture and supply automatic molding machines that are pat par with international standards.

Specifications :

Jolting Load	280 kgs
Squeezing Pressure	5000 kgs
Pattern Draw	203 mm
Table Size	750 x 535 mm
Max. Box Size (outside dimns)	635 x 572 mm
Min Box Size (outside dimns)	355 x 280 mm
Max. Height between squeeze
Plate and table	385 mm
Squeeze plate adjustment	203 mm
Squeeze stroke	76 mm
Table height from floor	597 mm
Air consumption per ½ mould	350 ltrs
Net Weight	1400 kgs

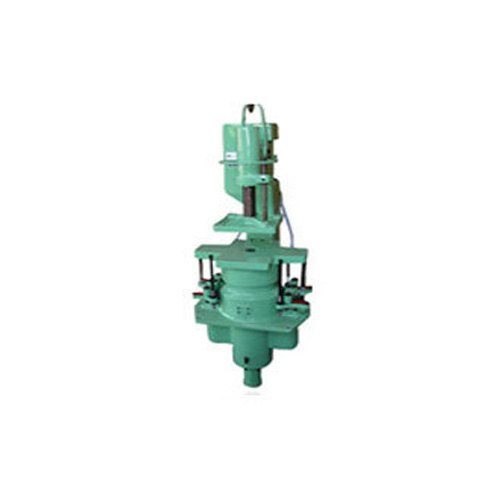

Semi Automatic Jolt Squeeze – LSP- 3

Use of accurate technical design, appropriate material selection and proven production techniques, makes the semi automatic moulding machine model – LSP-3 suitable for large and small production units. The machines are designed and fabricated with precaution and precision that leading to high performing products. Consumption of minimal power makes these machines a cost effective options for our clients. Superior predominance in mould structure, wear & corrosion resistant parts & components are aspects that make our machines durable. More details are as follow:

Specifications :

Jolting Load	340 kgs
Squeezing Pressure	7200 kgs
Pattern Draw	260 mm
Table Size	915 x 635 mm
Max. Box Size (outside dimns)	850 x 635 mm
Min Box Size (outside dimns)	535 x 330 mm
Max. Height between squeeze
Plate and table	890 mm
Squeeze plate adjustment	203 mm
Squeeze stroke	101 mm
Table height from floor	635 mm
Air consumption per ½ mould	410 ltrs
Net Weight	1950 kgs

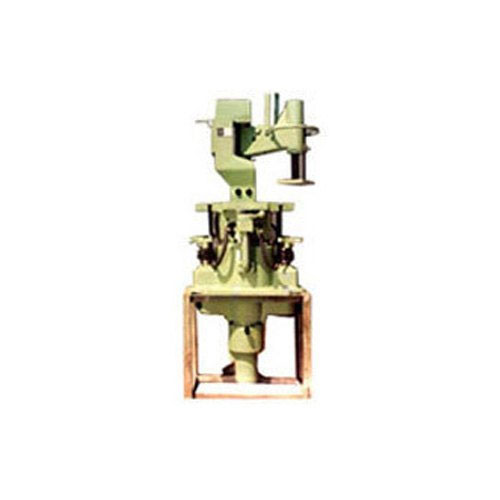

Semi Automatic Molding Machine Model – LSP- 1

Semi Automatic Molding Machine Model- LSP-2

Semi Automatic Jolt Squeeze – LSP- 3
